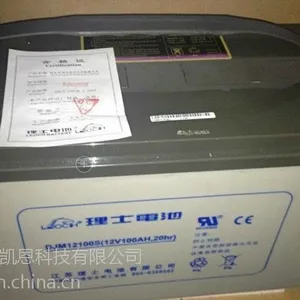

| 品牌：理士 | 型号：DJM12100 12V100AH/10HR | 化学类型：铅酸蓄电池 |
| 电压：12V | 类型：储能用蓄电池 | 荷电状态：免维护蓄电池 |
| 电池盖和排气拴结构：阀控式密闭蓄电池 | 额定容量：100AH | 外型尺寸：209*407*174mm |
| 产品认证：泰尔 | 适用范围：电力用蓄电池 |
理士AGM系列阀控式密封铅酸蓄电池广泛使用在通信系统、电力系统、应急灯照明系统、自动化控制系统、消防和安全警报系统、太阳能、风能系统、计算机备用电源、便携式仪器、仪表、医疗系统设备、电动车、电动工具
理士AGM系列阀控式密封铅酸蓄电池广泛使用在通信系统、电力系统、应急灯照明系统、自动化控制系统、消防和安全警报系统、太阳能、风能系统、计算机备用电源、便携式仪器、仪表、医疗系统设备、电动车、电动工具
产品特性
1. 寿命长。2. 自放电率极低。
3. 容量充足。4. 使用温度范围宽。
5. 密封性能好。6. 导电性好。
7. 充电接受能力强。8. ***的防爆排气系统。
应用领域
1.多用途的2. 不间断电源3. 电子能源系统
4. 紧急备用电源5. 紧急灯6. 铁路信号
7. 航空信号8. 安防系统9. 电子器械与装备
10.通话系统电源11.直流电源12.自动控制系统
产品规格表
电池型号 Battery Model 额定电压 Voltage (V)额定容量 Nominal Capacity (AH) 外形尺寸 Dimension (mm) 端子形式 Terminal
20HR10HR5HR3HR1HR长宽高总高
1.80V/Cell1.80V/Cell1.75V/Cell1.75V/Cell1.67V/CellLengthWidthHeightTotal Height
DJM12381240.238.033.330.323.4197±2165±1170±1170±1T6
DJM12401242.440.035.031.824.6197±2165±1170±1170±1T6
DJM12451247.845.039.435.727.7197±2165±1170±1170±1T6
DJM12501253.050.043.839.930.8257±2132±1200±2200±2T6
DJM12551258.455.048.243.833.8229±2138±1205±2226±2T6
DJM12601263.660.052.547.736.9259±2168±1208±2214±2T6
DJM12651269.065.057.051.640.0348±3167±1178±1178±1T6
DJM12751279.675.065.559.746.1348±3167±1178±1178±1T6
DJM1275H1279.675.065.559.746.1259±2168±1208±2230±2T6
DJM12801284.880.070.063.649.2259±2168±1208±2214±2T6
DJM12901295.490.079.071.755.4330±3173±1212±2220±2T11
DJM1290H1295.490.079.071.755.4305±3168±1207±2213±2T6
DJM121001210610087.579.561.5330±3173±1212±2220±2T11
DJM121201212712010595.473.8410±3177±1225±2225±2T11
DJM121401214814012311186.1344±3171±1274±2280±2T11
DJM121501215915013211992.3485±3170±1240±2240±2T11
DJM1218012191180158143111530±3209±2214±2220±2T11
DJM1220012212200175159123522±3240±2218±2224±2T11
DJM1223012244230202183141522±3240±2218±2224±2T11
DJM1225012266250219199154522±3268±2220±2226±2T11
DJM660663.660.052.547.736.9185±1112±1205±2205±2T3
DJM6100610610087.579.561.5195±1170±1206.5±2212.5±2T6
DJM6120612712010595.473.8280±2128±1203±2203±2T6
DJM6150615915013211992.3260±2180±1247±2253±2T7
DJM61806191180158143111322±3178±1228±2234±2T11
DJM62006212200175159123322±3178±1228±2234±2T1
DJW12-7.0127.006.506.005.464.331516593.599T2/T1
DJW12-7.2127.206.706.205.614.461516593.599T2/T1
DJW12-7.5127.507.006.455.854.641516593.599T2/T1
DJW12-7.8127.807.306.706.094.831516594.5100T2/T1
DJW12-8.0128.007.406.906.244.951516594.5100T2/T1
DJW12-8.5128.507.907.306.635.261516594.5100T2/T1
DJW12-9.0129.008.407.757.025.571519895101T2/T1
DJW12-101210.09.308.607.806.191519895101T2/T1
DJW12-10H1210.09.308.607.806.1915165111117T2/T1
DJW12-121212.011.210.39.367.431519895101T2/T3
DJW12-141214.013.012.110.98.671519895101T2/T3
DJW12-151215.014.012.911.79.29181.577167.5167.5T3/T12
DJW12-171217.015.814.613.310.5181.577167.5167.5T3/T12
DJW12-181218.016.715.514.011.1181.577167.5167.5T3/T12
DJW12-201220.018.617.215.612.4181.577167.5167.5T3/T12
DJW12-241224.022.320.718.714.9166.5175125125T3/T12
DJW12-261226.024.222.420.316.1166.5175125125T3/T12
DJW12-281228.026.024.121.817.3166.5175125125T3/T12
DJW12-301230.027.925.823.418.6195130164178T5/T6
DJW12-331233.030.728.425.720.4195130164178T5/T6/T12
DJW12-351235.032.630.127.321.7195130164178T5/T6/T1
